About SmartFlow
Smartflow is a professional application engineering company that offers comprehensive solutions for New & Existing Buildings by providing an “Engineered Rainwater Drainage System” To manage the heaviest rainfall with ease. Our objective is to drain large roofs reliably & quickly by offering end-to-end services for New Installations and Refurbishment projects in roof rainwater management by providing highly efficient and cost-effective solution.
With a multi-disciplinary team and innovation at the core, we are an Emerging Siphonic Roof Drainage System Specialist catering to the need of all types of construction projects. Our philosophy is to save space and cost for our clients by providing highly efficient design at affordable pricing.
We Cater To
TORRENT Siphonic rainwater drainage system is the most modern technology in the constructions sector used in the drainage of rainwater from the roofs of medium and large size buildings with complex design and high engineering requirements.

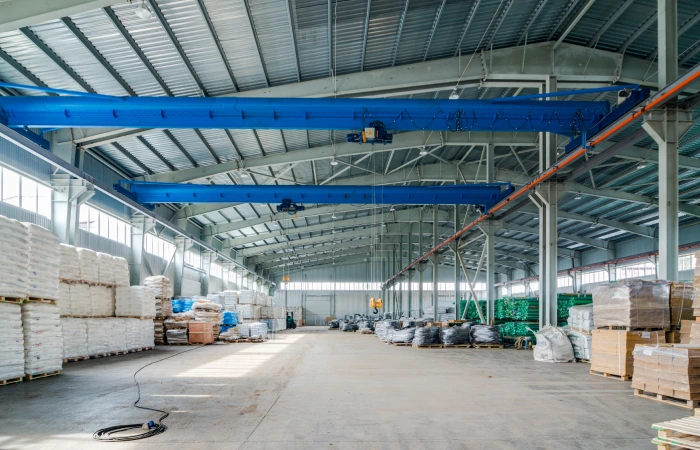

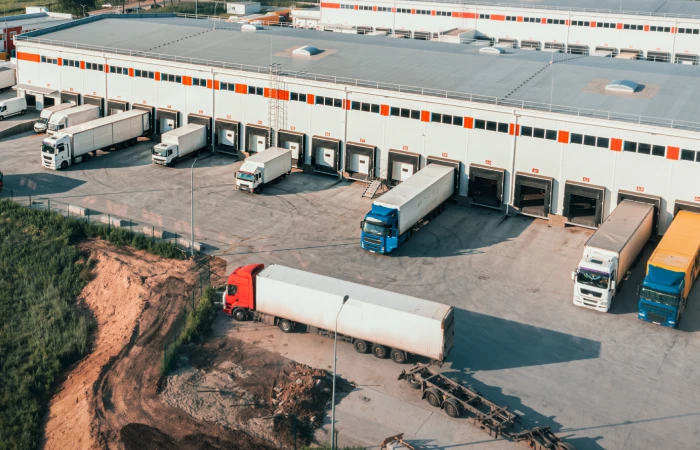

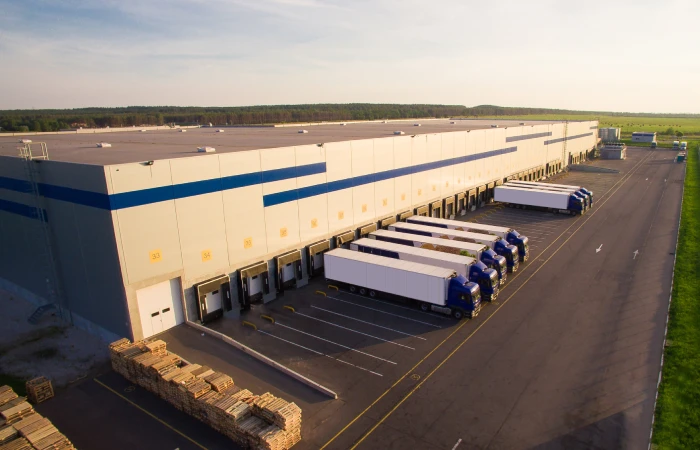

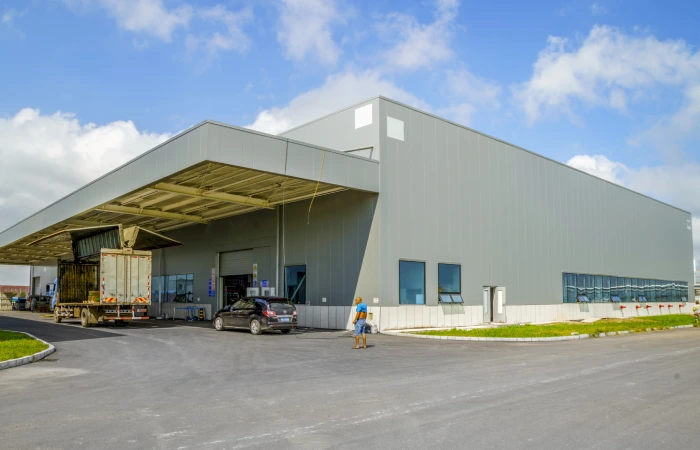

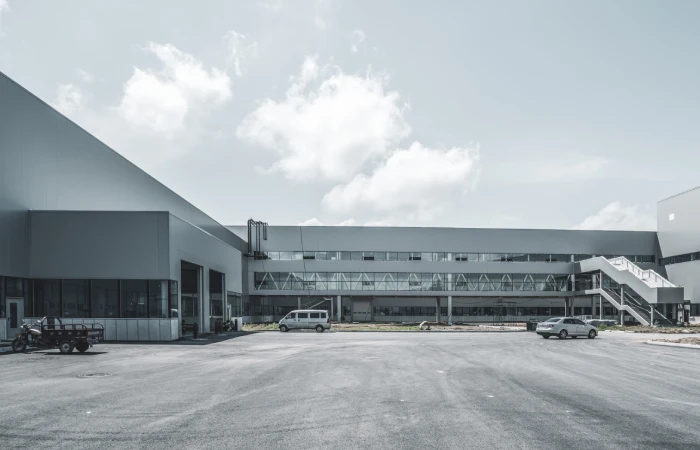

Industrial Buildings, Warehouses & distribution Centers

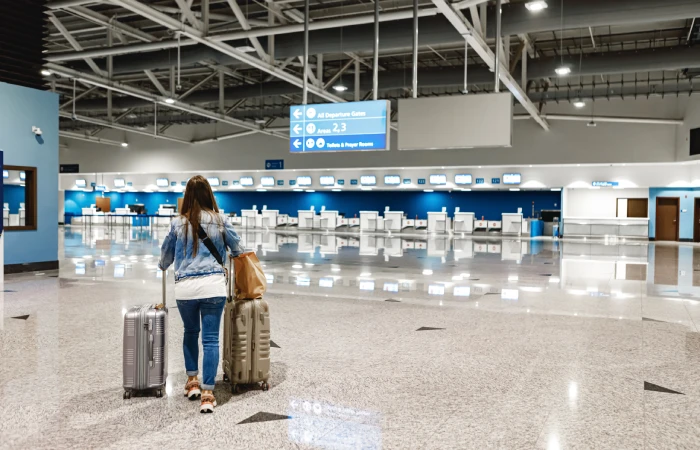

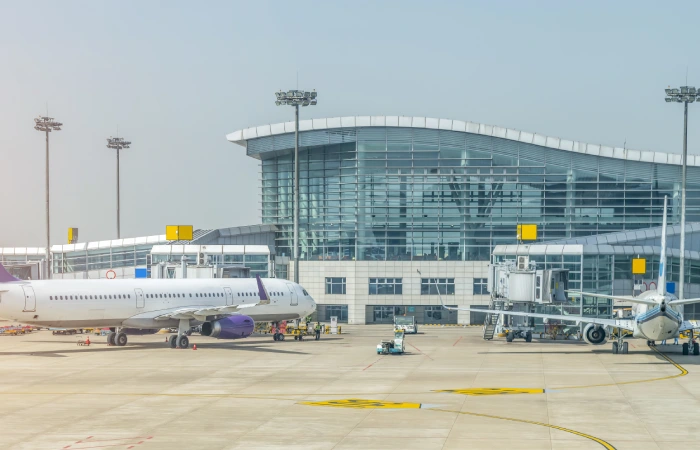

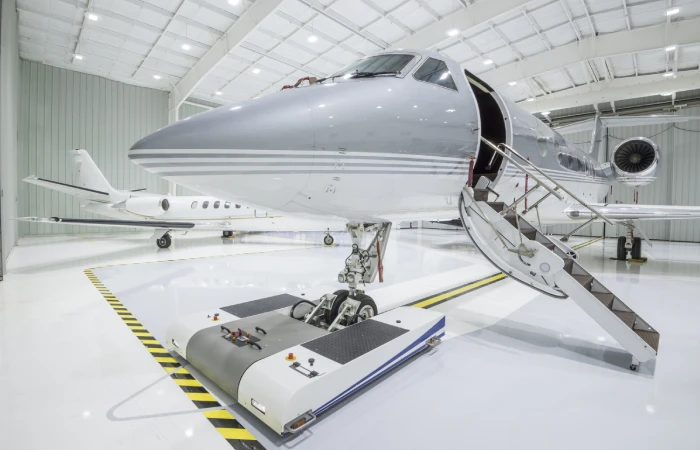

Airports terminals & Aircraft hangers

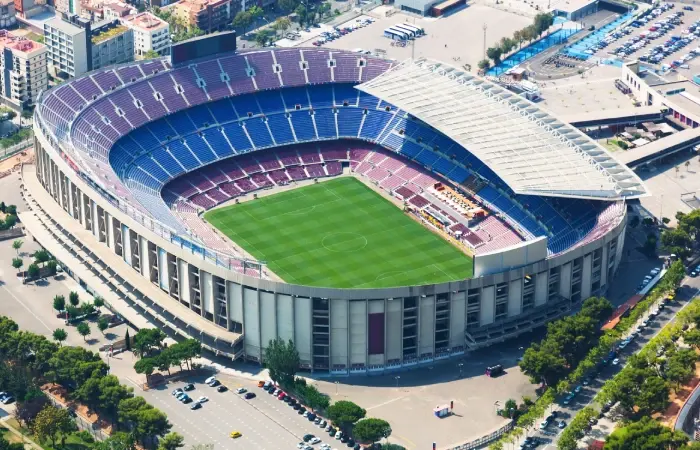

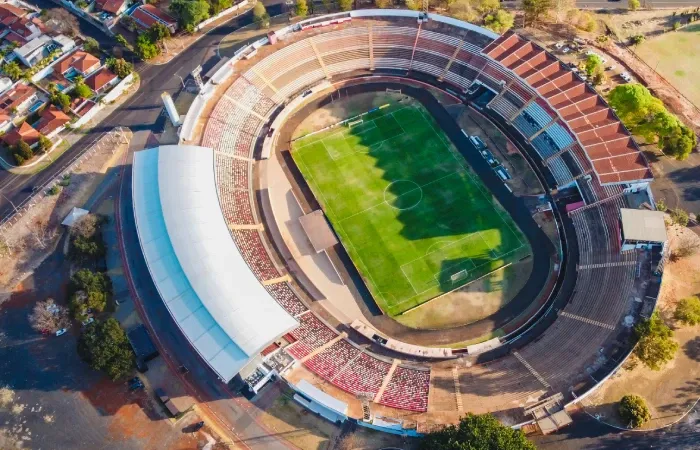

Sports Stadiums & Recreation Facilities
Exhibition Centers, Malls & Auditoriums
Commercial Complexes, IT Buildings & Data centers
Efficient Roof Drainage
With change in raining pattern, to handle the intensified rainfall, it is very important to choose an efficient and cost-effective rainwater drainage system to drain the rainwater out of a building.
Rainwater drainage systems on the roof can be divided into 2 types:
Gravity Drainage System
Old age conventional roof drainage system is an open system working on gravity flow principal that always carries air in the pipes along with the water. As a result, the pipes are usually only half-filled of water even during periods of heavy rainfall where the Horizontal flow is induced by providing slope in piping network.
This conventional planning has proved unsupportive with frequent heavy rainfall that we have been experiencing nowadays because of its lower drainage capacity, complex installation of leakage prone piping network.
Siphonic Drainage System
Siphonic roof drainage system is made up of special outlets that incorporate an anti-vortex plate / baffle plate that prevents air entering into the pipes. The absence of air in the system allows it to run 100% full of water making use of the entire pipe section and vastly increasing flows that are 10 times faster when compared to conventional drainage systems. High velocity & downward pull of the water in the vertical downpipe generate the vacuum in horizontal piping, thus the water is sucked or siphoned from the roof making the drainage process fast and efficient. The entire system is designed and installed using siphonic principal by balancing velocities, friction, negative pressure and drain rate.

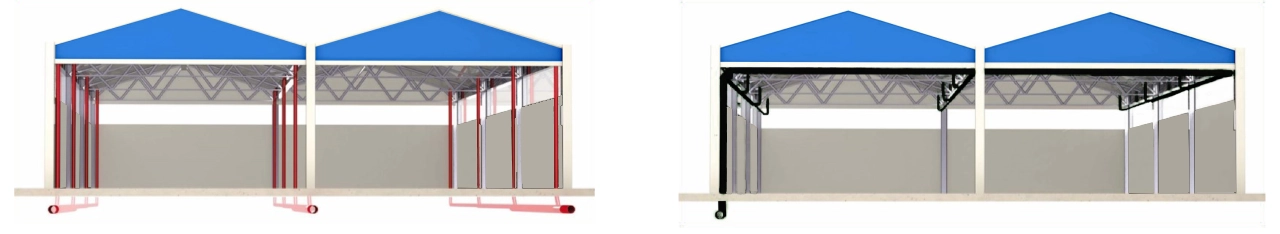

Difference Between Gravity Drainage & Siphonic Drainage
Gravity / Conventional - Traditional system
- Many down pipes
- Slope in pipe work (at roof or underground)
- Larger pipe diameters
- More groundwork under buildings
- Low flow speed
- Low drainage capacity
- Not self-cleaning
Siphonic - Advance system
- Fewer down pipes
- No slopping pipe work for optimal use of space
- Smaller pipe diameters
- Less groundwork under buildings
- High flow speed
- High drainage capacity
- Self-cleaning
SmartFlow Introducing
TORRENT
Siphonic Roof Rainwater Drainage System

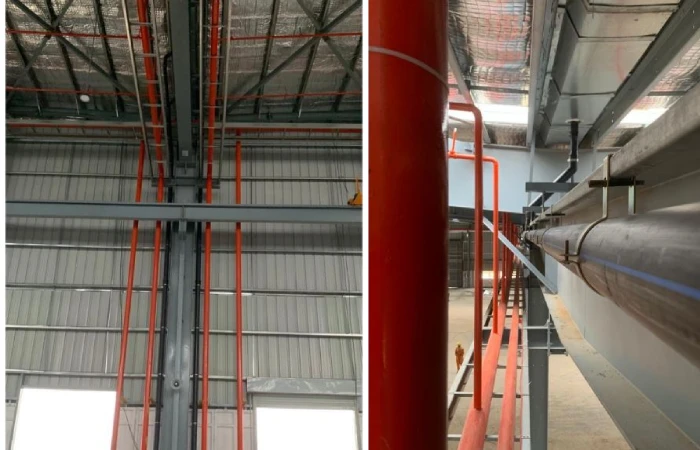

Torrent Siphonic Roof Drainage System, making Rainwater drainage process faster, reliable & efficient. Our experts have neatly curated well-engineered roof drainage system that create negative pressure in the installed piping by preventing the entry of air through specially designed outlets that leads to a full-bore flow with high velocity.
Siphonic roof drainage system is made up of special outlets that incorporate an anti-vortex plate / baffle plate that prevents air entering into the pipes. The absence of air in the system allows it to run 100% full of water making use of the entire pipe section and vastly increasing flows that are 10 times faster when compared to conventional drainage systems.
Why SmartFlow Torrent System?
Cost Effective
The Benefit-to-Cost ratio is much higher than the traditional drainage system due to material saving and reduction in installation times and labor, proving the system as true cost-effective solution for roof drainage.
Resources Saving
Less load on structure, light weight and fewer downpipe require less groundwork that gives extra space for utilization. Overall saves on material requirement for system.
Robust System
HDPE piping along with specially and bracketing system make the installation leakproof guidelines; it ensures higher system and unaffected to the vibrations and performance for years. thermal variations in the installed system.
Assured Performance
The system is designed as per specific project requirements and installed as per precise guidelines; it ensures higher system performance for years.
Siphonic Roof Drainage For

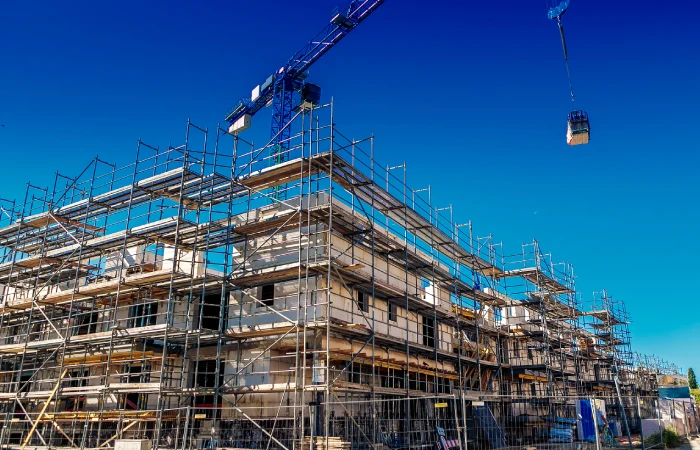

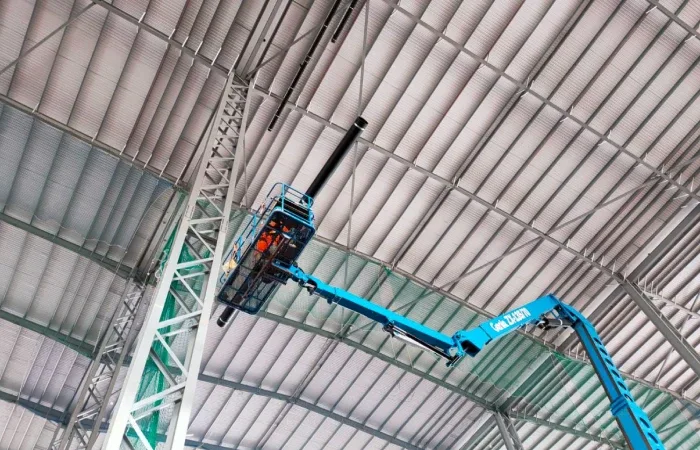

New Build
Benefits of Torrent Siphonic roof drainage system are enormous for new buildings with large footprints and complex architectural and engineering requirements.
Upgrade & Refurbishment

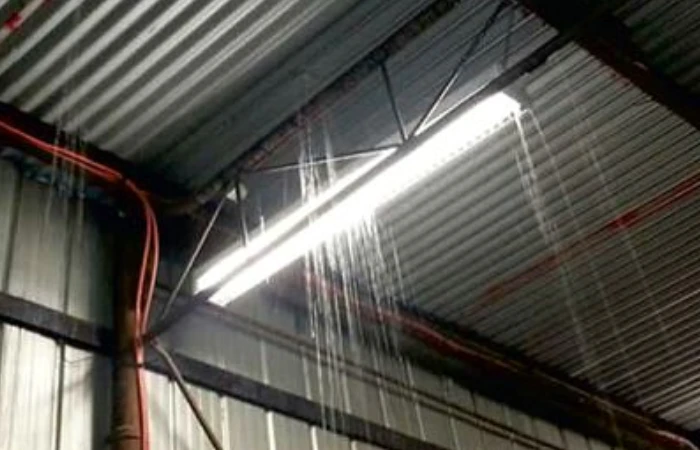

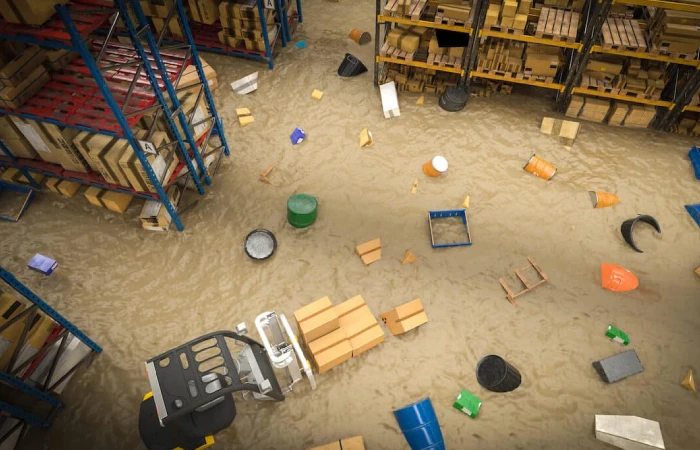

With change in raining pattern, the existing industrial & commercial buildings are facing the challenges in handling the rainwater as the existing roof drainage system is insufficient and incapable of managing this increasing intensity in rainfall.
